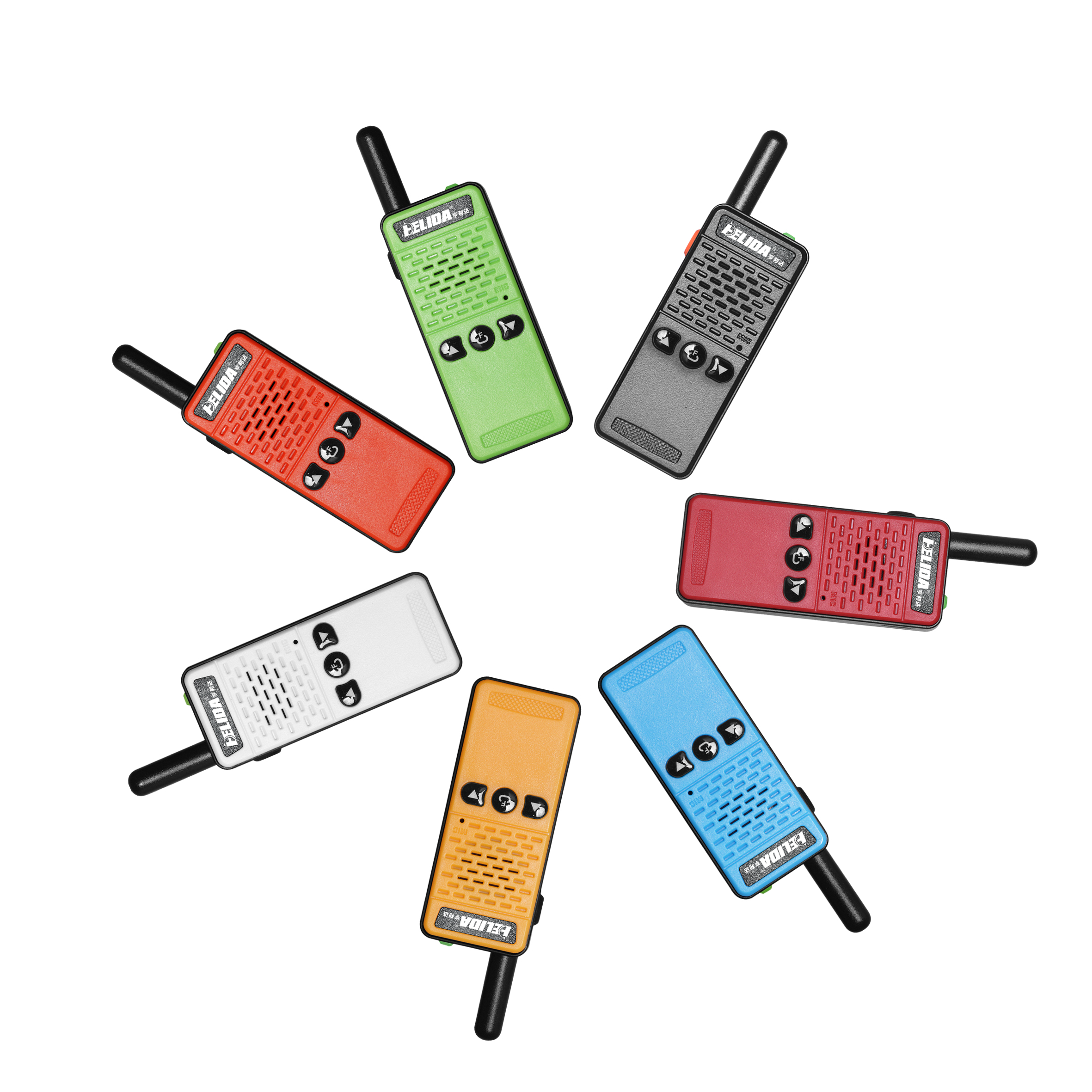

Portable Mini Walkie Talkie FM Transceiver Radio

Portable Radio Two Way Radio 2W 400-520MHZ 16 Channel T-M2 Handheld Mini Walkie Talkie FM Transceiver Mini Radio

Description
Inquiry

Portable Radio Two Way Radio 2W 400-520MHZ 16 Channel T-M2 Handheld Mini Walkie Talkie FM Transceiver Mini Radio
Product performance description
20 years we focus on walkie talkie manufacture

Main Feature

▲ Frequency Band: UHF(400-520MHz) ▲ 16 Channels

▲ 50CTCSS+105CDCSS ▲ PC programmable

▲ FM: 87MHz-108MHz ▲ Power saving function

NO.	Name	Description
1	Antenna
2	Indicator light	Red light is on: Transmitting signal Green light is on: Receiving Signal
3	USB Socked	Charging Interface
4	LCD panel	Operation status indicator, clock,channel etc.
5	Scan key	Scan/Monitor key
6	Down key	decrease channel/volume
7	Power/Menu	Power on/off,Menu entrance
8	Up key	Increase channel/volume
9	Call key	Alert key
9	Earphone Jack	Earphone interface

Specification

Channel 16

Working Temperature -20℃ ~ 60℃

Standard Voltage 3.7V

Battery Capacity 1200 mAh

Channel Spacing 12.5 K/25KHz

SIZE(excluding antenna) 95mmx18mmx29mm

Weight 35 g

Antenna Impedance 50Ω

Transmitting Part

Freq Stability ≤±2.5 ppm

Output power < 2.5W

Modulation F3E

Residual FM ≤ -35 dB

Audio Distortion ≤ 3%

Receiving Part

Sensitivity ≤-120 dBm

Adjacent selectivity ≥70 dB

Intermodulation ≥70 dB

immunity

SN ratio ≥48 dB

Audio Distortion ≤ 3%

NO.	Item	QTY
1	FM transceiver	1
2	Charger	1
3	USB cable	1
4	Headset	1
5	Strap l	1
6	User manual	1

walkie talkie.jpg

Trouble shooting：

Trouble		Reason and Solution
Fail to boot		Battery low
Fail to transmit		Please confirm that the PTT is pressed completely and Battery Voltage.
Fail to receive		Confirm the machine is set to same channel and CTSS/DCS. Confirm the PTT key is released completely. Obstacles,indoor or in the car may interfere with the call,change your position.
Noise and inference		Current channel may be occupied,tune to another channel.
Limited Call		Check distance between the machines is too long.

FAQ

1. Who are we?
We are professional walkie talkie manufacture based in Fujian, China, over 20years experience on tele-communication with self- designed patent, pioneer of Mini walkie-talkie, Digital Mini Radio, UV Dual water-proof Radio, wireless walkie talkie, offer OEM/ODM service.

2. How can we guarantee quality?

Always a pre-production sample before mass production;Always final Inspection before shipment;

We have inspection for incoming material and during production and before packing.

3.What can you buy from us?
MINI Walkie Talkie, Network Handheld Radio, UHF\VHF Walkie Talkie, DMR\DPMR Walkie Talkie, Walkie Talkie Accessories

4. Why do you buy from us ?
Self design dbility, Flexible order quantity, Own-branded with stock for quick delivery, After-sales warranty

Quick Communication and Steady Quality Service always.

5. How you buy from us?
Bulk MOQ 100pc, the more you buy the better price you get.

Sample 2pc for better matched.

Lead time: about 30days, if you have rush order, let us know ASAP, we would help you as much as we can.

Terms of payment: Bank Transfer (T/T), Western Union, Paypal and L/C.

Just contact us.
